    驱动形式 6x4

型号Model

ZZ3257N3847A

驾驶室Cab

HW76

发动机（马力）Engine(Hp)

371

功率（千瓦）Power(Kw)

273

变速箱Transmission

                             HW19710

前桥Front Axle

HF9

方向机Steering

ZF

后桥Rear Axles

HC16

轮胎Wheels & Tyres

12R22.50

平板尺寸Flatbed Dimensions(mm)

6200×2500x1550mm

整车尺寸Dimensions(mm)

9800×2500×3445

整备质量Kerb weight (Kg)

12600

发动机

Engine

型号Model

                               WD615

马力Horsepower

                                371

最大输出功率

Maximum output Kw/r/min

                                273

最大扭矩

Maximum torque N.m/r/min

1350/1300-1600

型式Type

直列六缸，水冷，四冲程，增压中冷，直喷式6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

缸径 x 行程Bore x Stroke

126x130mm

气门Valve

2

排量Displacement

9.726L

中国重汽制造，欧II排放标准，80℃节温器，刚性风扇

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan

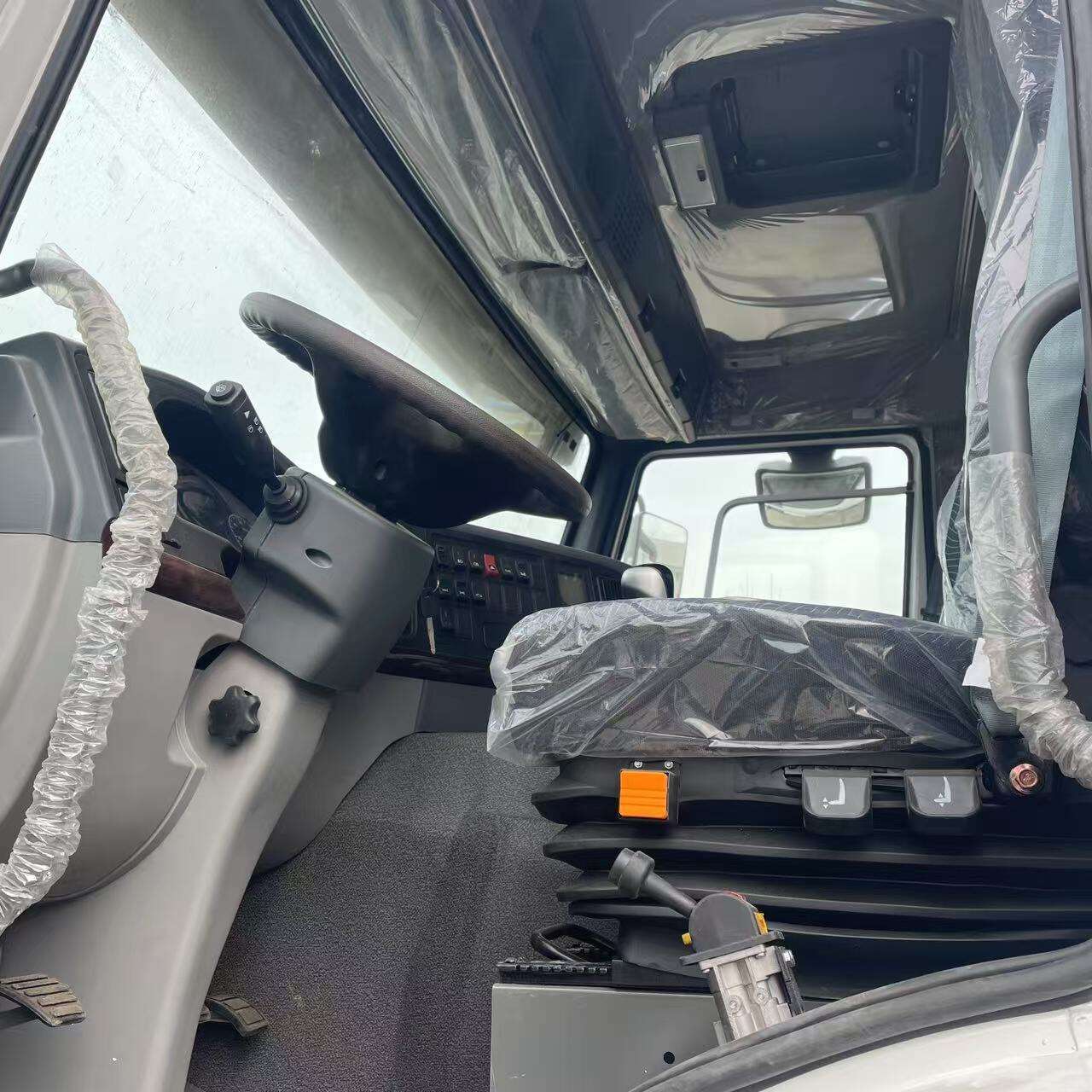

驾驶室

Cab

中国重汽HW76-HOWO加长型驾驶室，单卧铺，新款座椅，上下、前后可调式方向盘，欧式新型整体暖风机；德国VDO仪表，安全带，外部遮阳罩，收音机，左置方向机，空调；

SINOTRUK HW76 Lengthen cab, single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner

离合器

Clutch

中国重汽Φ430拉式膜片离合器

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

变速箱

Transmission

中国重汽HW19710,10个前进档和2个倒档

SINOTRUK HW19710  ,10 forward and 2 reverse

Ratio:  10.62  7.87  5.88  4.38  3.27  2.43  1.80  1.34  1.00  13.91(R1)  3.18(R2)

前桥

Front Axle

HF9中国重汽HOWO新9吨前桥，鼓式制动器

SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.

方向机

Steering

ZF方向机和ZF转向油泵,系统压力18MPa

ZF Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2

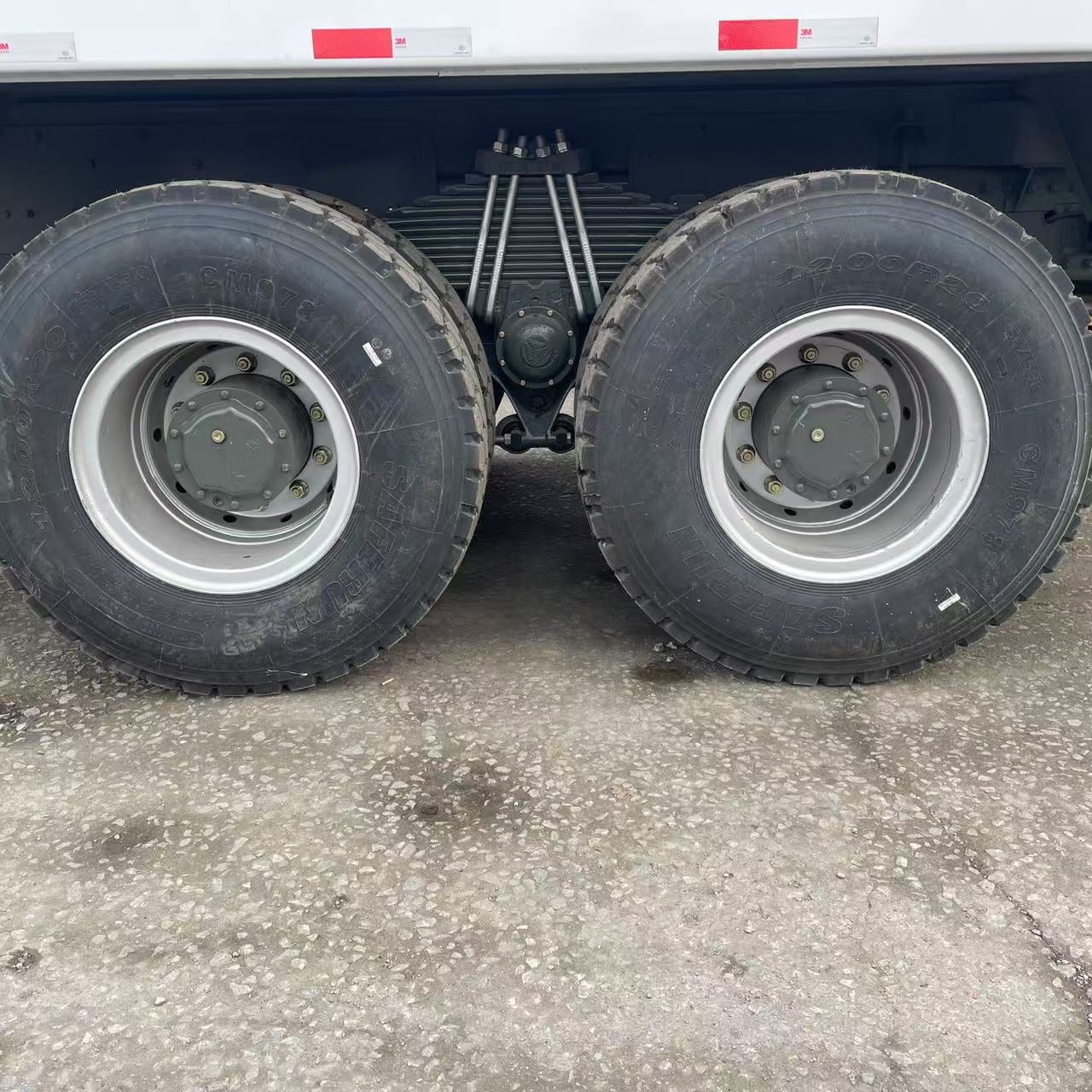

后桥

Rear Axles

中国重汽HC16重型减速驱动后桥，双级减速带轮边减速驱动桥，速比5.73；HOWO系列工程车辆基本配置，可以在恶劣的环境中使用，是道路条件差和超载的重型施工车辆客户的最佳选择。

SINOTRUK HC16 Heavy reduction drive axle, hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

制动系统

Brake System

制动：双回路气压制动

驻车制动（紧急制动）：弹簧储能断气制动

辅助制动：发动机排气制动，选装EVB制动

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Auxiliary brake:engine exhaust valve brake;Option:EVB

轮辋及轮胎

Wheels & Tyres

1200R20

电器

Electrics

工作电压：24V，负极搭铁。Operating voltage:24V,negative grounded

起动机：24V，7.5KW。Starter:24V,7.5 Kw

发电机：28V，1500W。Alternator:3-phase,28V,1500 W

电瓶：2x12V，165Ah。Batteries:2x12 V,165 Ah

喇叭，大灯，雾灯，刹车灯，转向灯，倒车灯。horn,headlamps,fog lights,brake lights,indicators and reverse light

油箱

Oil Tank

300升方形铝合金油箱

Square type-300L Aluminum alloy fuel tank

重量

Weight in kg

总质量Gross vehicle weight                                                          25000

性能

Performance

最高车速Maximum drving speed (80km/h)
